skywalking 服务端部署

先部署ES，这部分可参考ELK日志部分

skywalking7.0服务端部署

下载部署文件后解压，修改配置文件,可以先备份原始配置文件。

主要添加 ES地址配置

vim application.yml

cluster:
  selector: ${SW_CLUSTER:standalone}
  standalone:
core:
  selector: ${SW_CORE:default}
  default:
    # Mixed: Receive agent data, Level 1 aggregate, Level 2 aggregate
    # Receiver: Receive agent data, Level 1 aggregate
    # Aggregator: Level 2 aggregate
    role: ${SW_CORE_ROLE:Mixed} # Mixed/Receiver/Aggregator
    restHost: ${SW_CORE_REST_HOST:0.0.0.0}
    restPort: ${SW_CORE_REST_PORT:12800}
    restContextPath: ${SW_CORE_REST_CONTEXT_PATH:/}
    gRPCHost: ${SW_CORE_GRPC_HOST:0.0.0.0}
    gRPCPort: ${SW_CORE_GRPC_PORT:11800}
    gRPCSslEnabled: ${SW_CORE_GRPC_SSL_ENABLED:false}
    gRPCSslKeyPath: ${SW_CORE_GRPC_SSL_KEY_PATH:""}
    gRPCSslCertChainPath: ${SW_CORE_GRPC_SSL_CERT_CHAIN_PATH:""}
    gRPCSslTrustedCAPath: ${SW_CORE_GRPC_SSL_TRUSTED_CA_PATH:""}
    downsampling:
      - Hour
      - Day
      - Month
    # Set a timeout on metrics data. After the timeout has expired, the metrics data will automatically be deleted.
    enableDataKeeperExecutor: ${SW_CORE_ENABLE_DATA_KEEPER_EXECUTOR:true} # Turn it off then automatically metrics data delete will be close.
    dataKeeperExecutePeriod: ${SW_CORE_DATA_KEEPER_EXECUTE_PERIOD:5} # How often the data keeper executor runs periodically, unit is minute
    recordDataTTL: ${SW_CORE_RECORD_DATA_TTL:90} # Unit is minute
    minuteMetricsDataTTL: ${SW_CORE_MINUTE_METRIC_DATA_TTL:90} # Unit is minute
    hourMetricsDataTTL: ${SW_CORE_HOUR_METRIC_DATA_TTL:36} # Unit is hour
    dayMetricsDataTTL: ${SW_CORE_DAY_METRIC_DATA_TTL:45} # Unit is day
    monthMetricsDataTTL: ${SW_CORE_MONTH_METRIC_DATA_TTL:18} # Unit is month
    # Cache metric data for 1 minute to reduce database queries, and if the OAP cluster changes within that minute,
    # the metrics may not be accurate within that minute.
    enableDatabaseSession: ${SW_CORE_ENABLE_DATABASE_SESSION:true}
    topNReportPeriod: ${SW_CORE_TOPN_REPORT_PERIOD:10} # top_n record worker report cycle, unit is minute
    # Extra model column are the column defined by in the codes, These columns of model are not required logically in aggregation or further query,
    # and it will cause more load for memory, network of OAP and storage.
    # But, being activated, user could see the name in the storage entities, which make users easier to use 3rd party tool, such as Kibana->ES, to query the data by themselves.
    activeExtraModelColumns: ${SW_CORE_ACTIVE_EXTRA_MODEL_COLUMNS:false}

storage:
  elasticsearch7:
    nameSpace: ${SW_NAMESPACE:""}
    clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:10.10.1.17:9200}
    protocol: ${SW_STORAGE_ES_HTTP_PROTOCOL:"http"}
    trustStorePath: ${SW_SW_STORAGE_ES_SSL_JKS_PATH:"../es_keystore.jks"}
    trustStorePass: ${SW_SW_STORAGE_ES_SSL_JKS_PASS:""}
    enablePackedDownsampling: ${SW_STORAGE_ENABLE_PACKED_DOWNSAMPLING:true} # Hour and Day metrics will be merged into minute index.
    dayStep: ${SW_STORAGE_DAY_STEP:1} # Represent the number of days in the one minute/hour/day index.
    user: ${SW_ES_USER:""}
    password: ${SW_ES_PASSWORD:""}
    secretsManagementFile: ${SW_ES_SECRETS_MANAGEMENT_FILE:""} # Secrets management file in the properties format includes the username, password, which are managed by 3rd party tool.
    indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:2}
    indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:0}
    # Those data TTL settings will override the same settings in core module.
    recordDataTTL: ${SW_STORAGE_ES_RECORD_DATA_TTL:7} # Unit is day
    otherMetricsDataTTL: ${SW_STORAGE_ES_OTHER_METRIC_DATA_TTL:45} # Unit is day
    monthMetricsDataTTL: ${SW_STORAGE_ES_MONTH_METRIC_DATA_TTL:18} # Unit is month
    # Batch process setting, refer to https://www.elastic.co/guide/en/elasticsearch/client/java-api/5.5/java-docs-bulk-processor.html
    bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:1000} # Execute the bulk every 1000 requests
    flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:10} # flush the bulk every 10 seconds whatever the number of requests
    concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
    resultWindowMaxSize: ${SW_STORAGE_ES_QUERY_MAX_WINDOW_SIZE:10000}
    metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:5000}
    segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
    profileTaskQueryMaxSize: ${SW_STORAGE_ES_QUERY_PROFILE_TASK_SIZE:200}
    advanced: ${SW_STORAGE_ES_ADVANCED:""}

receiver-sharing-server:
  selector: ${SW_RECEIVER_SHARING_SERVER:default}
  default:
    authentication: ${SW_AUTHENTICATION:""}
receiver-register:
  selector: ${SW_RECEIVER_REGISTER:default}
  default:

receiver-trace:
  selector: ${SW_RECEIVER_TRACE:default}
  default:
    bufferPath: ${SW_RECEIVER_BUFFER_PATH:../trace-buffer/}  # Path to trace buffer files, suggest to use absolute path
    bufferOffsetMaxFileSize: ${SW_RECEIVER_BUFFER_OFFSET_MAX_FILE_SIZE:100} # Unit is MB
    bufferDataMaxFileSize: ${SW_RECEIVER_BUFFER_DATA_MAX_FILE_SIZE:500} # Unit is MB
    bufferFileCleanWhenRestart: ${SW_RECEIVER_BUFFER_FILE_CLEAN_WHEN_RESTART:false}
    sampleRate: ${SW_TRACE_SAMPLE_RATE:10000} # The sample rate precision is 1/10000. 10000 means 100% sample in default.
    slowDBAccessThreshold: ${SW_SLOW_DB_THRESHOLD:default:200,mongodb:100} # The slow database access thresholds. Unit ms.

receiver-jvm:
  selector: ${SW_RECEIVER_JVM:default}
  default:

receiver-clr:
  selector: ${SW_RECEIVER_CLR:default}
  default:

receiver-profile:
  selector: ${SW_RECEIVER_PROFILE:default}
  default:

service-mesh:
  selector: ${SW_SERVICE_MESH:default}
  default:
    bufferPath: ${SW_SERVICE_MESH_BUFFER_PATH:../mesh-buffer/}  # Path to trace buffer files, suggest to use absolute path
    bufferOffsetMaxFileSize: ${SW_SERVICE_MESH_OFFSET_MAX_FILE_SIZE:100} # Unit is MB
    bufferDataMaxFileSize: ${SW_SERVICE_MESH_BUFFER_DATA_MAX_FILE_SIZE:500} # Unit is MB
    bufferFileCleanWhenRestart: ${SW_SERVICE_MESH_BUFFER_FILE_CLEAN_WHEN_RESTART:false}

istio-telemetry:
  selector: ${SW_ISTIO_TELEMETRY:default}
  default:

envoy-metric:
  selector: ${SW_ENVOY_METRIC:default}
  default:

receiver_jaeger:
  selector: ${SW_RECEIVER_JAEGER:-}
  default:
    gRPCHost: ${SW_RECEIVER_JAEGER_HOST:0.0.0.0}
    gRPCPort: ${SW_RECEIVER_JAEGER_PORT:14250}

query:
  selector: ${SW_QUERY:graphql}
  graphql:
    path: ${SW_QUERY_GRAPHQL_PATH:/graphql}

alarm:
  selector: ${SW_ALARM:default}
  default:

telemetry:
  selector: ${SW_TELEMETRY:none}
  none:
  prometheus:
    host: ${SW_TELEMETRY_PROMETHEUS_HOST:0.0.0.0}
    port: ${SW_TELEMETRY_PROMETHEUS_PORT:1234}
  so11y:
    prometheusExporterEnabled: ${SW_TELEMETRY_SO11Y_PROMETHEUS_ENABLED:true}
    prometheusExporterHost: ${SW_TELEMETRY_PROMETHEUS_HOST:0.0.0.0}
    prometheusExporterPort: ${SW_TELEMETRY_PROMETHEUS_PORT:1234}

receiver-so11y:
  selector: ${SW_RECEIVER_SO11Y:-}
  default:

configuration:
  selector: ${SW_CONFIGURATION:none}
  none:
  apollo:
    apolloMeta: http://106.12.25.204:8080
    apolloCluster: default
    apolloEnv: ""
    appId: skywalking
    period: 5

启动

./bin/startup.sh start

查看日志

tail -100f logs/skywalking-oap-server.log

pom文件集成相关类

	<dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-logback-1.x</artifactId>
	    <version>7.0.0</version>
        </dependency>

        <dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-trace</artifactId>
            <version>7.7.0</version>
        </dependency>

logback.xml 配置

<?xml version="1.0" encoding="UTF-8" ?>
<configuration>
    <jmxConfigurator/>
    <property name="log_pattern" value="%d{yyyy-MM-dd HH:mm:ss.SSS Z} [%tid] [%thread] %-5level %logger{36}:%line - %msg%n" />
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
                <pattern>${log_pattern}</pattern>
            </layout>
        </encoder>
    </appender>
    <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedRollingPolicy">
            <fileNamePattern>/logs/application/${KUBERNETES_SERVICE_NAME}/server.%d{yyyy-MM-dd}.%i.log.zip</fileNamePattern>
            <maxFileSize>100MB</maxFileSize>
            <maxHistory>15</maxHistory>
            <totalSizeCap>5GB</totalSizeCap>
        </rollingPolicy>
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.TraceIdPatternLogbackLayout">
                <pattern>${log_pattern}</pattern>
            </layout>
        </encoder>
    </appender>

    <logger name="org.springframework" additivity="false">
        <level value="info"/>
        <appender-ref ref="STDOUT"/>
        <appender-ref ref="FILE"/>
    </logger>

    <root level="INFO">
        <appender-ref ref="STDOUT"/>
        <appender-ref ref="FILE"/>
    </root>
</configuration>

应用集成 skywalking 客户端

dockerfile 添加 skywalking

FROM alpine:3.11.2

ENV JAVA_VERSION=8 \
    JAVA_UPDATE=242 \
    JAVA_HOME="/usr/lib/jvm/default-jvm" \
    PATH="$PATH:/usr/lib/jvm/java-1.8-openjdk/jre/bin:/usr/lib/jvm/java-1.8-openjdk/bin"

RUN sed -i 's/dl-cdn.alpinelinux.org/mirror.tuna.tsinghua.edu.cn/g' /etc/apk/repositories && \
    # install tzdata
    apk add --no-cache --virtual=.build-dependencies tzdata && \
    # install ops tools
    apk add --no-cache busybox-extras iproute2 jq curl bash freetype tini && \
    # install jdk
    apk add --no-cache openjdk8 && \
    # install jmx and skyalking
    mkdir /ops && \
    cd /tmp && wget https://file.zifuy.cn/skywalking-agent.tar.gz && \
    wget https://file.zifuy.cn/jmx.tar.gz  && \
    tar xvf skywalking-agent.tar.gz -C /ops/ && tar xvf jmx.tar.gz -C /ops/ && \
    rm -rf /tmp/* && \
    # set timezone
    cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && \
    echo "Asia/Shanghai" > /etc/timezone && \
    # clean
    apk del .build-dependencies


ENTRYPOINT ["/sbin/tini", "--"]
CMD ["bash"]

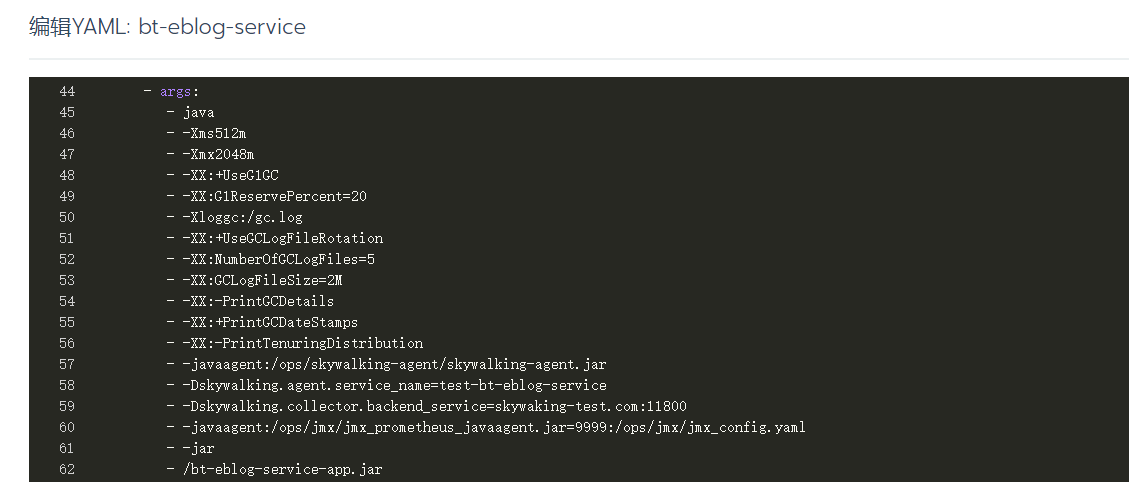

在启动 skywalking 客户端时 需指定 skywalking 服务端地址

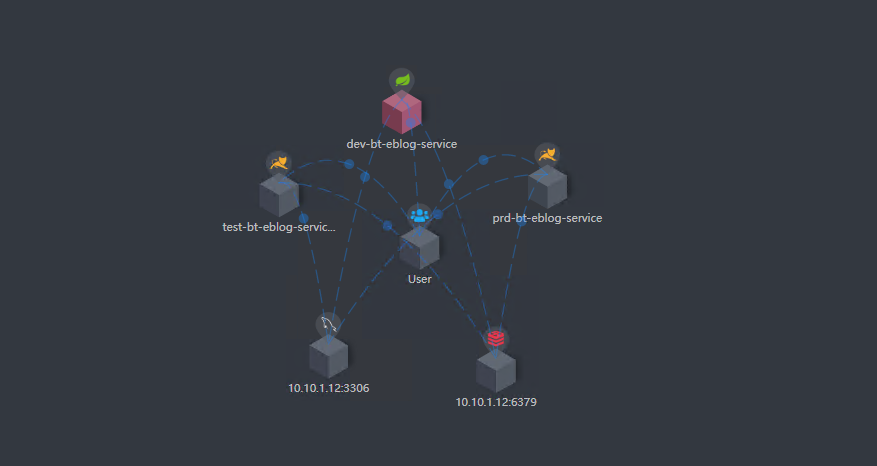

先确认客户端已注册到服务端

已注册到服务端

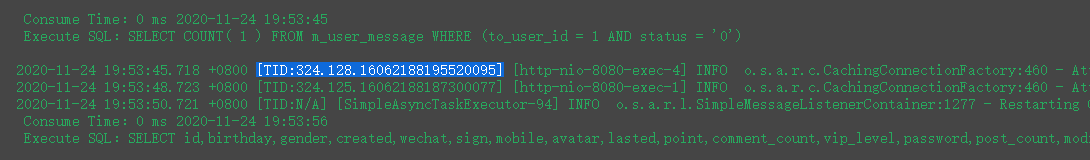

成功显示TID前提除以上配置外 还需请求是从应用外部过来时才显示 TID

验证：

集成成功
